Product Type: PSVD-1K-1000V-CF2
The device for capacitors reforming is a special power supply designed primarily for reforming capacitors in DC intermediate circuits of frequency converters. However, it is also possible to use it as a general regulated laboratory power supply.
Electrical specifications:
- Output voltage: 0 to 1000 VDC
- Output current :
-
- 2A – voltage 0V to 550 V
- 1A – voltage up to 1000 V
-
- Max. power: 1000 W
- Power supply: 230 V / 50-60 Hz
Other specifications:
- Charges, discharges, and forms capacitors
- Galvanic isolated output
- Current limitations
- Parallel operation
- Over current and over temperature protection

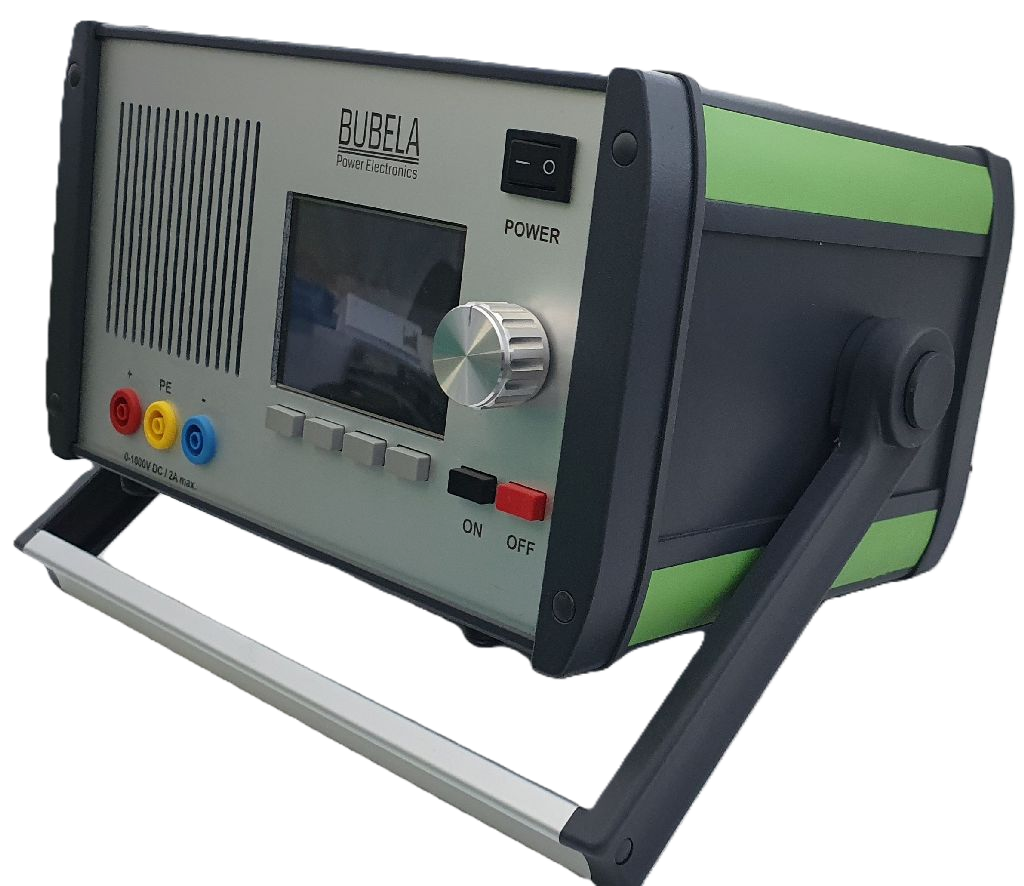

- Controls: graphical TFT touch display with buttons and rotary dial for adjusting parameters
- Remote control over MODBUS TCP and RTU

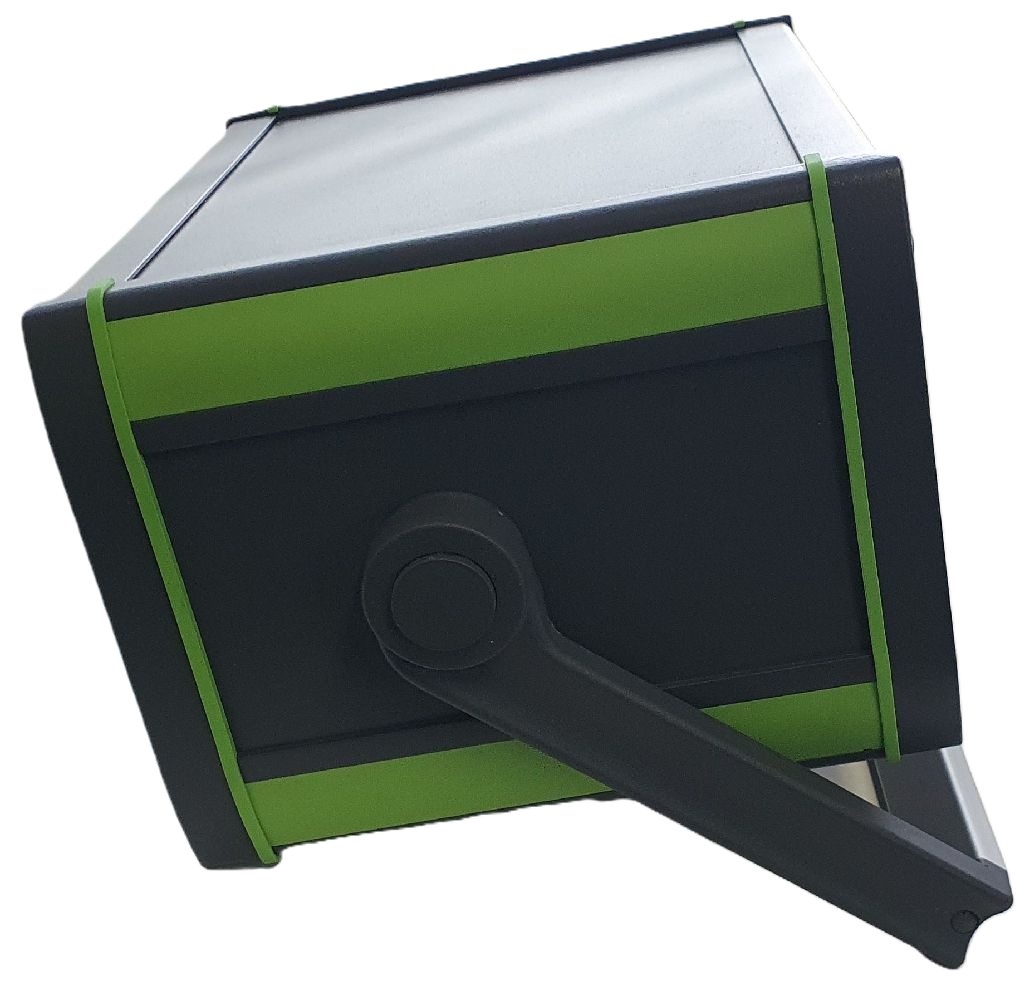

- Mechanical design: portable instrument box
Adjustable parameters:
- Output voltage
- Current limitations set point
- Voltage ramp, ranging from 1 second to 24 hours
- Shutdown time after reaching the desired voltage
Connections cables with banana and safety crocodile clips are included.
